Acceleration Switch Specs
| Part # | Select Controls 2037-1-000 |
| Package | Hermetically sealed TO-18 axial lead |

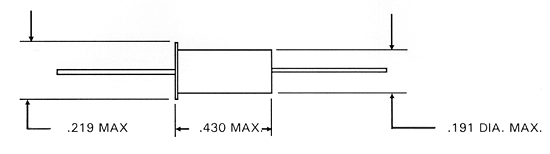

| Dimensions | 0.43"x0.19" |
| Weight | < 2.0 grams |

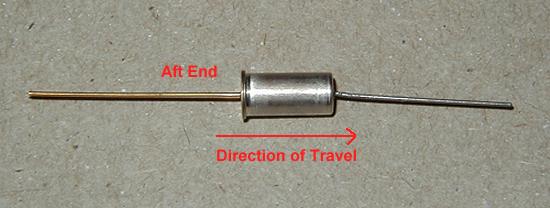

| Direction | Linear |
| Activation Level | 2.1G +/- 10% |
| Contacts | Normally Open |
| Contact Rating | 250mA at 24 VDC < 10Ohms |
| Insulating Resistance | 30 MOhm minimum |
| Operating Temp. | -65deg F to +185deg F |
